Magnetostrictive distance transducers enable contact-free and wear-free measurement. The housing of this transducer has a measuring element (waveguide) which, in interaction with an external, freely movable magnet, can map distances very accurately. Sensors of this class have been successfully used in automation, level measurement and in hydraulic cylinders at pressures up to 350 bar for many years.

Magnetostrictive Transducer MAB

Magnetostrictive Transducer MAB

Ranges50 - 2500 mm
Resolution max.2 µm
Measured value position / speed (not with SSI-output)
Linearity max.±0.01 %
Displacement speed< 10 m/s
Analog output0 - 10 V, 4 - 20 mA
Digital outputSSI, CANopen
Voltage supply24 VDC ±20 %
Protection classIP67
Operating temperature -30..+75 °C (+90 °C for SSI output)
Magnetic cursorsilding cursor, floating cursor
DownloadData sheet | CAD-data | Installation guide
Magnetostrictive Transducer MAB

Magnetostrictive Transducer MAP

Ranges50 - 1500 mm
Resolution max. limited by the quality of the power supply
Linearity max.±0.04 % (min. ±0.09 mm)
Displacement speed< 10 m/s
Analog output0.1 - 10.1 V, 4 - 20 mA
Voltage supply24 VDC ±20 %
Protection classIP65
Operating temperatur-20...+75 °C
Magnetic cursor sliding or floating magnetic cursor
Download

Data sheet | CAD-data | Installation guide

Magnetostrictive Transducer MAZ

Magnetostrictive Transducer MAZ

Ranges50 - 2500 mm
Resolution max.2 µm
Measured valueposition and speed with CANopen
Linearity max.±0.02 %
Displacement speed < 10 m/s
Analog output0 - 10 V, 4 - 20 mA
Digital outputSSI, CANopen
Voltage supply24 VDC ±20 %
Protection classIP67 / max. 350 bar
Operating temperatur-30...+75 °C (-30...+90 °C for SSI output)
Magnetic cursormagnetic cursor or floating cursor for liquids
DownloadData sheet | CAD-data | Installation guide
Magnetostrictive Transducer MSB

Magnetostrictive Transducer MSB

Ranges50 - 4000 mm
Resolution max.10 µm
Linearity max.±0.02 %
Displacement speed < 10 m/s
Analog output0.1 - 10.1 V, 0.1 - 5.1 V, 4 - 20 mA
Voltage supply 24 VDC ±20 %, (12 VDC for output, 0.1...5.1 VDC) output
Protection class IP67
Operating temperatur -30...+90 °C (-30...+75 °C for FS> 2500 mm)
Operating pressureup to 350 bar
Magnetic cursormagnetic cursor
DownloadData sheet | CAD-data | Installation guide

Magnetostrictive Transducer Measurement Principle

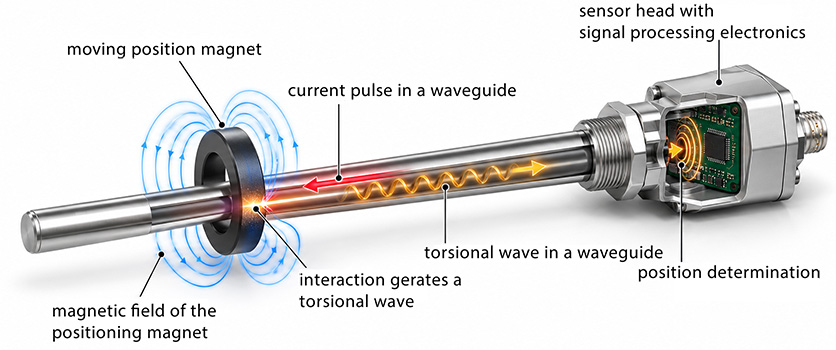

In Magnetostrictive Transducers respectively hydraulic sensors a current pulse is generated inside a copper pipe for the position measuring, thereby a circular magnetic field is created which spreads bundled inside a waveguide. The permanent magnet of the Magnetostrictive Transducer forms measuring detector whose magnetic flux line is at a 90° degree angle to electric flux line of the current pulse. Because of the heterodyne of the flux lines a flexible distortion is generated inside the waveguide by magnetostriction. The distortion spreads to both sides inside the waveguide. The propagation speed amounts 2850 m/s. This mechanic pulse turns into a electric signal in the end of the waveguide. A controller calculates the run-time from the source until the Signal Conditioner. This run-time is proportional to the distance between Signal Conditioner and permanent magnet. This principle enables a contactless, nonwearing and absolute measurement. Magnetostrictive Transducers are working reliable with hydraulic cylinders, machine tools, squeezing machines, woodworking machines, rolling mills, packaging machines, assembly gantries, and cutting lines.

Magnetostrictive Transducer Measurement Principlerinzip
Magnetostrictive Transducer Measurement Principlerinzip

Magnetostrictive transducers - applications

Magnetostrictive transducers are used for position measurement. The sensors are especially used to measure the stroke of hydraulic cylinders. Their cylindrical design predestines magnetostrictive transducers for industrial application and the installation in hydraulic cylinders. Magnetostrictive hydraulic sensors are used in packing machines, plastic machines, steel rolls or in beverage bottling plants.

Magnetostrictive Sensor
Magnetostrictive Sensor

Hydraulic lifts

In workshops or in the automobile production cars are lifted for work on the substructure. This is usually done by hydraulic lifts. Hydraulic cylinders installed in the lifts hoist the cars. The stroke movement are measured by magnetostrictive transducers. The position measurement is especially important in automatized processes.

Magnetostrictive transducers - lift bridges

Lift bridges are built over busy waterways. These lift up when a ship wants to drive through the waterway. For this a bridge part is raised by means of hydraulic cylinders so far that the ship can easily pass underneath the lifted bridge. Magnetostrictive transducers are installed inside the hydraulic cylinders. The sensors measure the stroke and transmit the values to a control unit. The hydraulic sensors ensure that the bridge part reaches the minimum height to let the ship pass.
