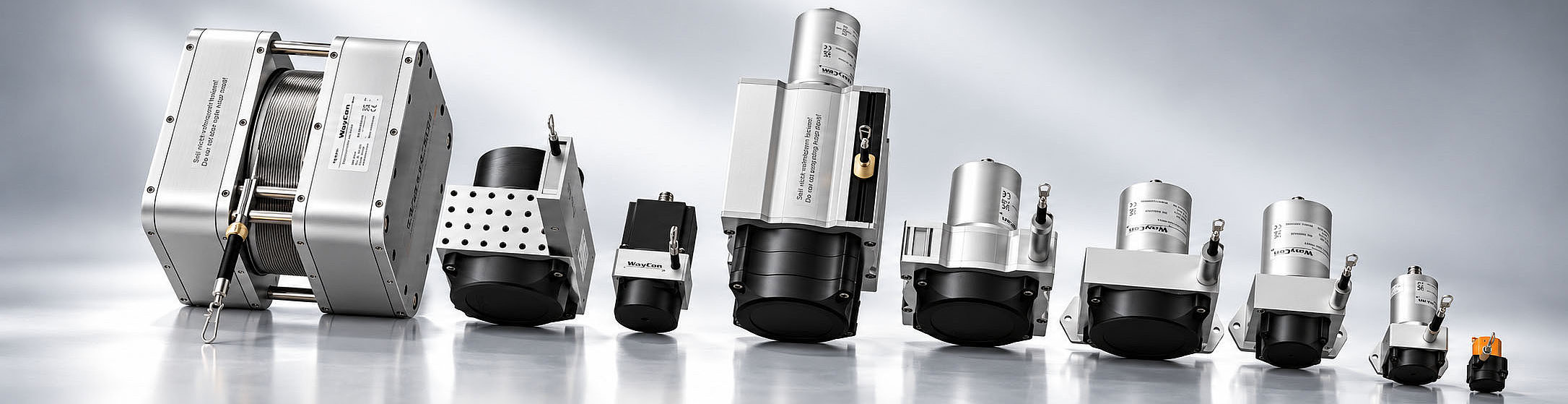

Draw Wire Sensors – overview of characteristics

Draw wire sensors by WayCon are available in many different models and with a variety of output signals. The following chart can help you to choose the right sensor for your measuring task.

Measurement ranges from 50 mm up to 50000 mm allow accurate length measurement in various fields of application. Examples for these applications are illustrated and explain on the application page.

The measurement principle of draw wire sensors is based on the measurement of way and length und is explained on its own subpage.

If you want detailed advice on length measurement, our competent consulting team as well as our partners worldwide are at your disposal. You can also leave us a message and we will contact you as soon as possible.

Sensor Measurement Ranges Analog Output Signal Digital Incremental Output Signal Digital Absolute Output Signal Special Features
SX50 50, 75, 100, 125, 150, 225. 250, 300, 375, 500, 625, 750, 1000, 1250 mm Potentiometer, 4...20 mA, 0...10 V Linearity analog output: depending on the measurement range up to 0.05 % Linedriver L (= RS422 = TTL compatible), Push-Pull G (supply 8...30 VDC) Linearity: independent of the measurement range up to 0.02 %, resolution: up to 28.8 pulses/mm SSI, CANopen Linearity: independent of the measurement range up to 0.02 %, resolution: adjustable via Bus parameters Standard series, protection class up to IP67, temperature range max. -40...120°C
SX80

1000, 1500, 2000, 2500, 3000 mm

Potentiometer, 4...20 mA, 0...10 V Linearity analog output: depending on the measurement range up to 0.05 % Linedriver L (= RS422 = TTL compatible), Push-Pull G (supply 8...30 VDC) Linearity: independent of the measurement range up to 0.02 %, resolution: up to 25 pulses/mm SSI, CANopen, DeviceNet, Profibus-DP, Profinet, EtherCAT Linearity: independent of the measurement range up to 0.02 %, resolution: adjustable via Bus parameters Standard series, protection class up to IP67, temperature range max. -40...120°C
SX120 3125, 4000, 5000, 6000 mm Potentiometer, 4...20 mA, 0...10 V Linearity analog output: depending on the measurement range up to 0.05 % Linedriver L (= RS422 = TTL compatible), Push-Pull G (supply 8...30 VDC) Linearity: independent of the measurement range up to 0.02 %, resolution: up to 16 pulses/mm SSI, CANopen, DeviceNet, Profibus-DP, Profinet, EtherCAT Linearity: independent of the measurement range up to 0.02 %, resolution: adjustable via Bus parameters Standard series, protection class up to IP67, temperature range max. -40...120°C

SX135-6-7-8

SX135

8, 10, 12, 15, 20, 25, 30, 35, 40, 42.5 m Potentiometer, 4...20 mA, 0...10 V Linearity analog output: depending on the measurement range up to 0.05 % Linedriver L (= RS422 = TTL compatible), Push-Pull G (supply 8...30 VDC) Linearity: independent of the measurement range up to 0.02 %, resolution: up to 15 pulses/mm SSI, CANopen, DeviceNet, Profibus-DP, Profinet, EtherCAT Linearity: independent of the measurement range up to 0.02 %, resolution: adjustable via Bus parameters Long distance sensor with movable rope outlet and profile housing. protection class up to IP67, temperature range max. -40...85°C
MH601, 1.5, 2, 2.5, 3, 3.5, 4 m

Potentiometer,

4...20 mA,

0...10 V,

0...5 V

Linearität Analog Ausgang: messbereichs-abhängig bis max. 0,5 %--CANopenLinearity: up to ±0.1 % Resolution: 0.002 % of the measurement rangeSensor for use in mobile hydraulics, protection class up to IP69K, temperature range max. -40...85°C
MH1203, 4, 5, 6, 7, 8, 9, 10 mPotentiometer, 4...20 mA, 0...10 V,
0...5 V
Linearität Analog Ausgang: messbereichs-abhängig bis max. 0,1 %--CANopenLinearity: up to ±0.1 % Resolution: 0.002 % of the measurement rangeSensor for use in mobile hydraulics, protection class up to IP69K, temperature range max. -40...85°C
SX2008, 10, 12 m----
SSI,
CANopen,
Profibus-DP, Profinet,
EtherCAT

Linearity:

±0,05 % (depending on the used encoder)

Hydraulic sensor for measuring in cylinder, pressure tight up to 300 bar
SX300 10, 15 m - - - - SSI, CANopen, Profibus-DP Linearity: independent of the measurement range up to 0.05 %, resolution: adjustable via Bus parameters To be mounted on the front side of cylinder, pressure tight up to 300 Bar
LX 50, 70, 96, 120, 250, 380, 500, 625, 750, 1000, 1250 mm Potentiometer Linearity Potentiometer depending on the measurement range up to 0.25 % TTL compatible (A/B signal, not differential) Linearity: independent of the measurement range up to 0.1 %, resolution: up to 4,46 pulses/mm - - Low cost, very compact series for installation in dry environments, manufacturer Unimeasure USA
FX-HM50, 75, 100, 125, 150, 200, 250, 300, 375 mm0...10 VDC + 0 – 0.4 VDCLinearity analog output: depending on the measurement range up to 1 %----very compact series for short measurement ranges, manufacturer Unimeasure USA
ZX38 mmPotentiometer, 89% VDC (±3 %) of Excitation VoltageLinearity analog output: depending on the measurement range up to 1 %----extrem compact series, manufacturer Unimeasure USA
HX

50 mm up to 50.8 m

Potentiometer, 4...20 mA, 0...10 V, ±10 V Linearity analog output: depending on the measurement range up to 0.15 % Linedriver L ( TTL compatible) Linearity: independent of the measurement range up to 0.03 %, resolution: up to 19.69 pulses/mm - - Models with speed output, manufacturer Unimeasure USA
