Signal Conditioners

Signal Conditioners

Signal Conditioners, also known as Signal Converters, are used to convert output signals of sensors into different signals.
For example: the signal conditioner PMX-24 converts the signals of sensors with potentiometric output into analog signals like 0…10 V or 4…20 mA.

Signal Conditioner PMX-24

Signal Conditioner PMX-24

TypSignal Conditioner
Input1...20 kOhm
Supply9...36 VDC
Operating temperature -40...+85 °C
Output4...20 mA, 0...10 V, 0...5 V, ±10 V, ±5 V
Download

Data sheet | CAD-Data | Installation guide

Signal Conditioner IMX

Signal Conditioner IMX

TypSignal Conditioner
InputTTL, HTL, SSI
Supply18...30 VDC
Operating temperature -20...+60 °C
Output0...20 mA, 4...20 mA, ±10 V
DownloadData sheet | Manual

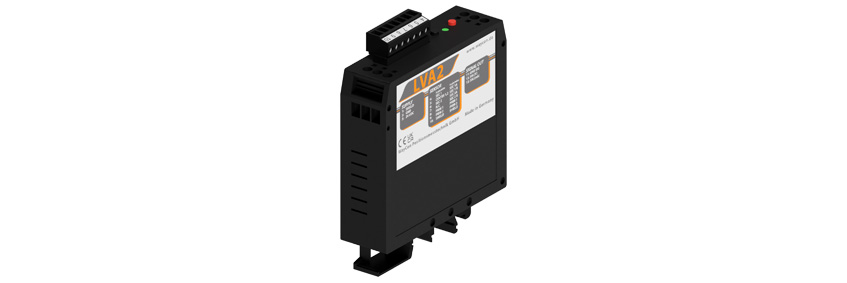

Amplifier LVA for LVDT

Amplifier LVA for LVDT

TypeAmplifier for LVDT
Sensitivity200, 500, 1000, 1500, 1900 mV
Supply18...36 VDC
Operating temperature -25...+85 °C
Output4...20 mA, 0...10 V
DownloadData sheet | CAD-Data (on request)
Signal Conditioner VTS-Box

Signal Conditioner VTS-Box

TypSignal Conditioner
InputPotentiometer
Supply8...35 VDC
Operating temperature -40...+85 °C
Outputmax. 10 mA; min. load 1 kOhm
Download

Data sheet | CAD-data
